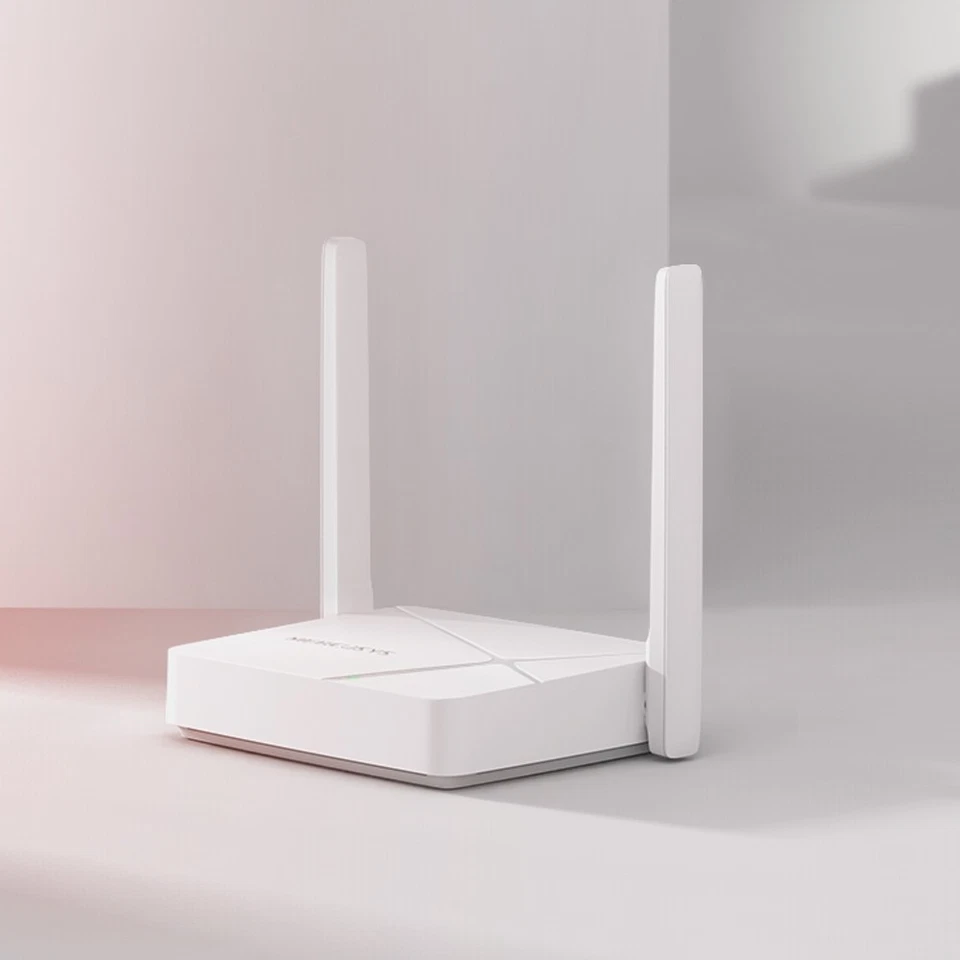

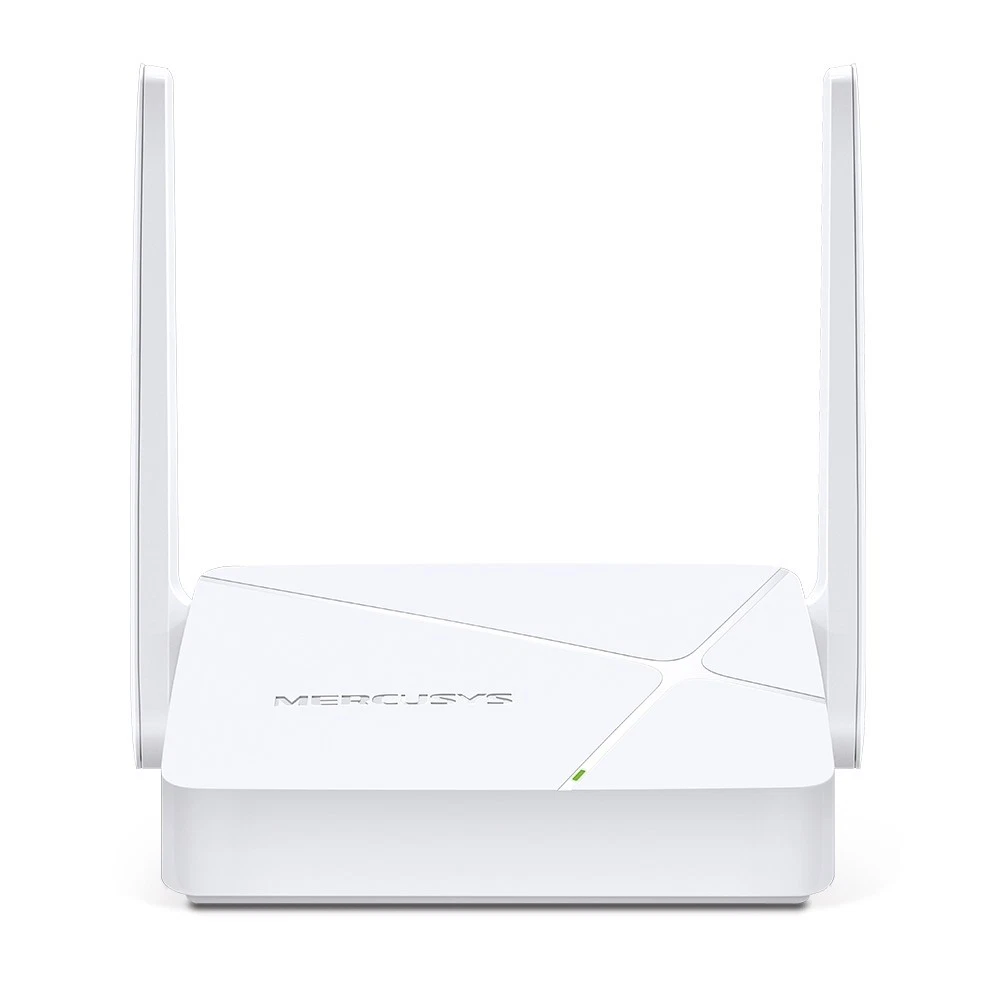

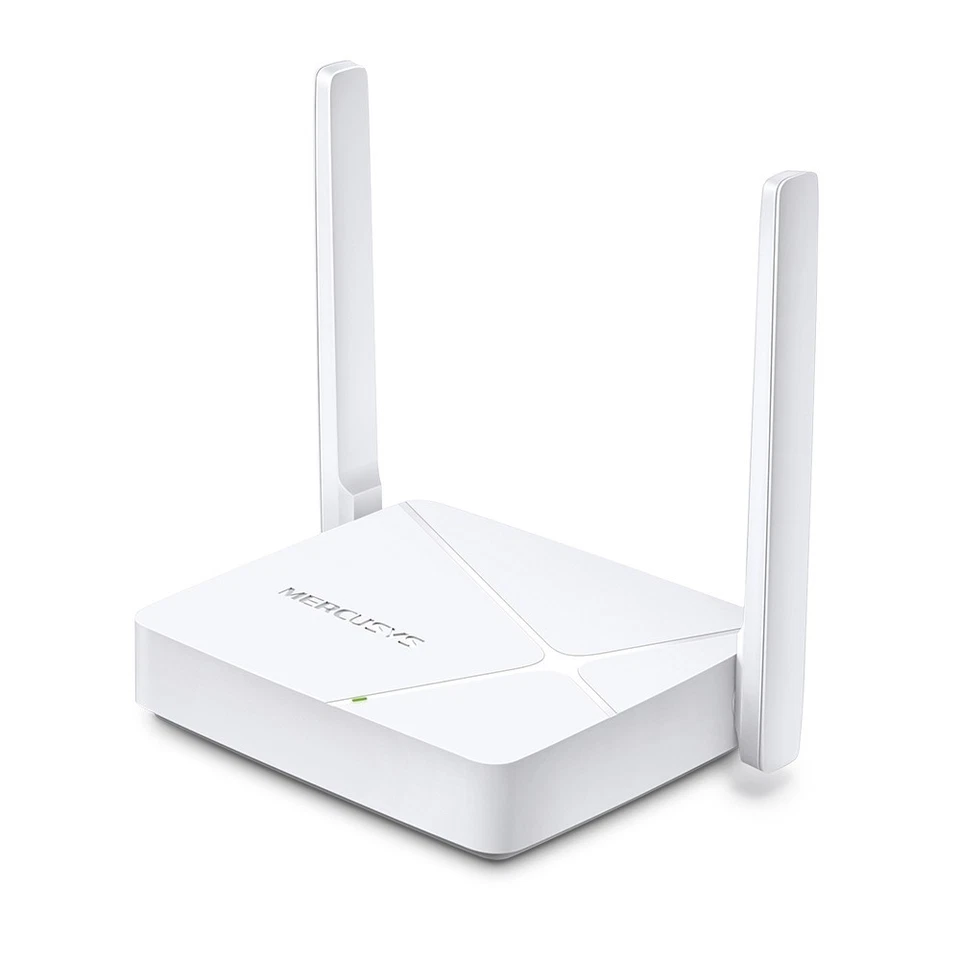

mercusys Router Wireless Dual Band AC750 Mercusys MR20 2.4GHz e 5GHz

router Wireless Dual Band AC750

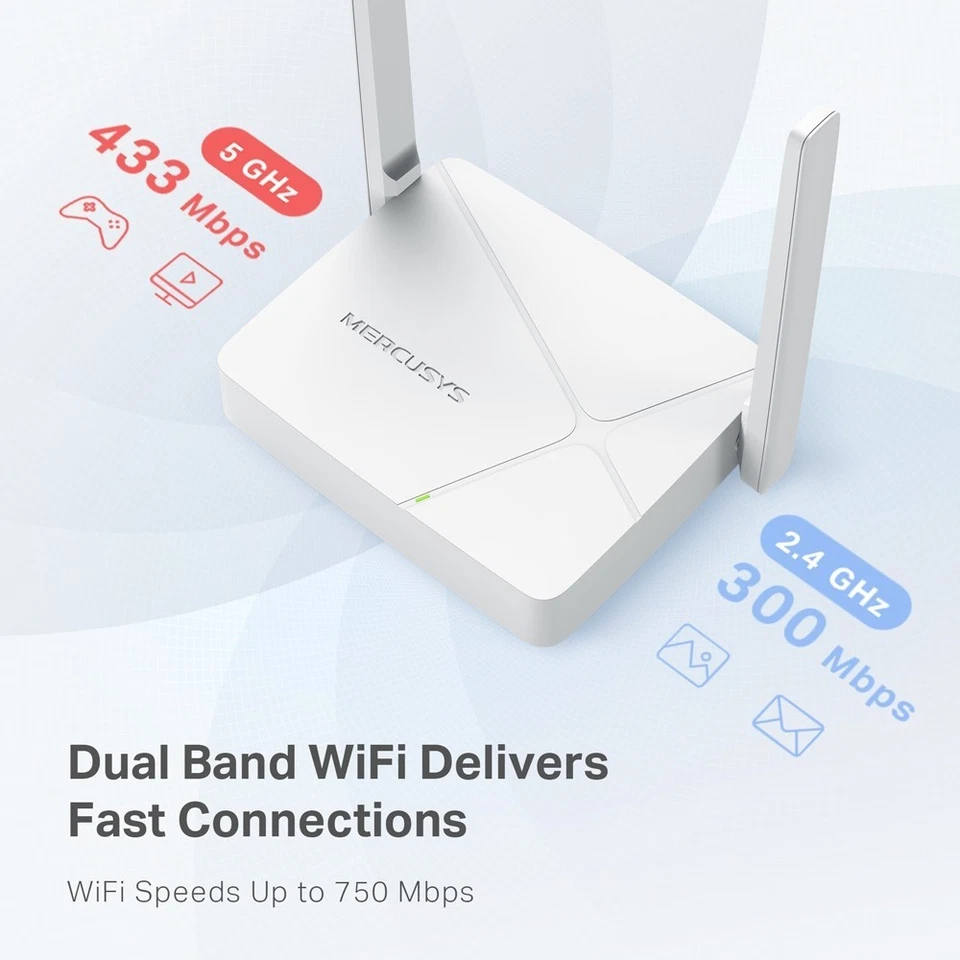

Wi-Fi Dual Band AC750 – Goditi connessioni Wi-Fi prive di lag con velocità combinata fino a 750Mbps (433 Mbps sulla banda 5GHz e 300Mbps sulla banda 2.4 GHz)
Ampia Copertura – 2 antenne esterne ad alto guadagno per una copertura Wi-Fi omnidirezionale in grado di raggiungere ogni stanza.

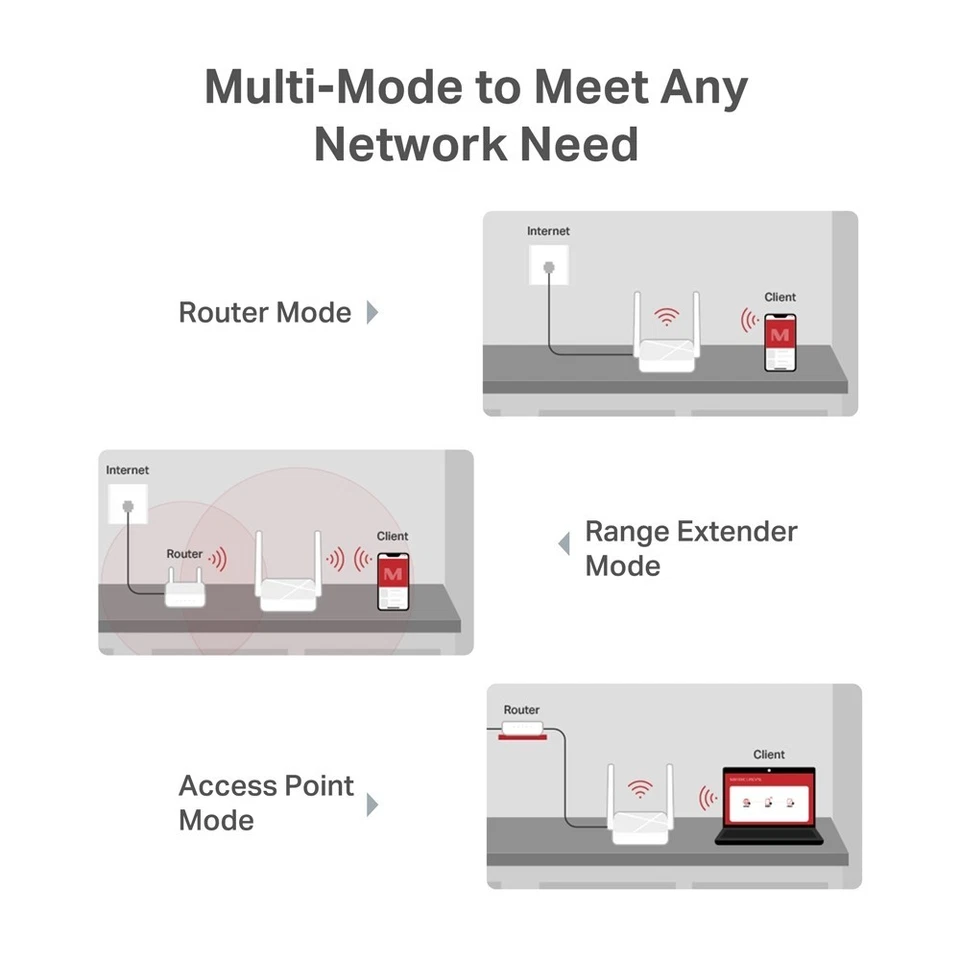

Modalità multiple – Modalità Router, Access Point e Range Extender per installazioni flessibili in ogni tipo di scenario.
Installazione semplice – Segui gli step dell’intuitiva pagina di configurazione web e rendi operativa la tua rete in pochi minuti.
Gestione intuitiva – Supporta funzionalità come Parental Control, QoS e rete guest.
Supporta IPTV e IPv6

WirelessSignal Rate
300 Mbps (2.4 GHz) + 433 Mbps (5 GHz),
compatible with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity
2.4G
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT40 MCS7:-73dBm
11n HT20 MCS7:-76dBm
5G
11a 6Mbps:-93dBm
11a 54Mbps:-75dBm
11ac VHT20 MCS8:-70dBm
11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS9:-62dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK

SoftwareOperation Modes
Router Mode, Range Extender Mode, Access Point Mode

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI Firewall, IP and MAC Address Binding

Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network

HardwareDimensioni (W X D X H)
4.5 3.7 1.0 in (114 94 26 mm)

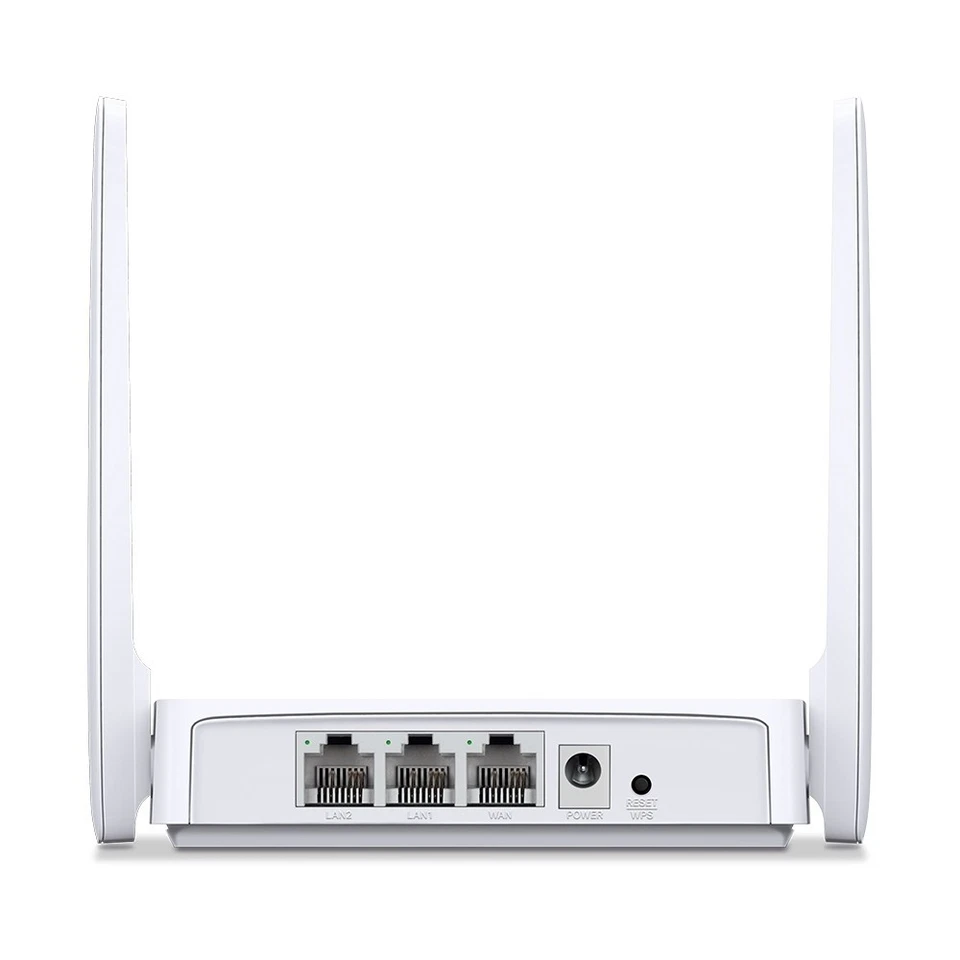

Interfaces
1 10/100 Mbps WAN Port, 2 10/100 Mbps LAN Ports

Button
Reset/WPS Button

Tipologia di Antenna
2 5 dBi Fixed Omni-Directional Antennas

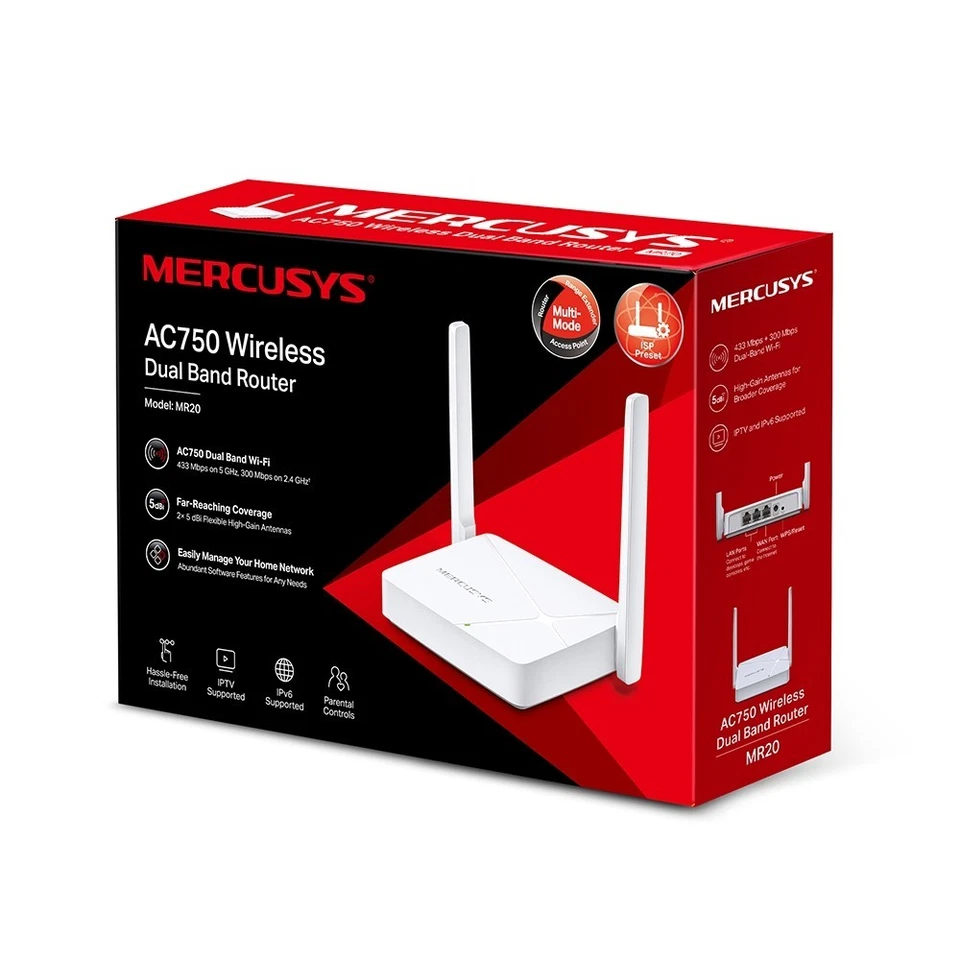

OthersPackage Contents
AC750 Wi-Fi Router (MR20)
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable

Environment
Operating Temperature: 0°C 40°C (32°F 104°F)
Operating Humidity: 10% 90% Non-Condensing
Storage Humidity: 5% 90% Non-Condensing
